The Institute of Electrical and Electronics Engineers Standar Association (IEEE-SA) - organisasi yang mengembangkan standar global berbagai industri, termasuk: Listrik & Energi, Perawatan Biomedis & Kesehatan, Teknologi Informasi & Robotika, Telekomunikasi & Otomatisasi Rumah, Transportasi, Nanoteknologi, Jaminan Informasi dll.




Standar IEEE 802 LAN/MAN - Komite mengembangkan dan memelihara Standar Jaringan dan Praktek.  Direkomendasikan dan Standar yang paling banyak digunakan untuk Ethernet, Bridging dan Virtual Bridged LAN Nirkabel LAN, Wireless PAN, Wireless MAN, Wireless. Media Independent Handover Services, dan Wireless RAN. Menggunakan proses yang terbuka dan terakreditasi serta pendukung secara Global.


Layanan dan Protokol (IEEE 802)


Lapisan DATA LINK
Lapisan Kedua dari bawah dalam model OSI, yang dapat melakukan konversi Frame jaringan berisi Data yang mendeteksi kesalahan dan pentransmisian ulang terhadap frame yang dianggap gagal.


 • Media Access Control (MAC)
Mengkoordinasikan akses langsung terhadap lapisan fisik tergantung Metode Media Access Control, seperti Carrier Sense Multiple Access with Collision Detection (CSMA/CD), Token Passing, atau Carrier Sense Multiple Access with Collision Avoidance (CSMA/CA).

MAC Address diimplementasikan beberapa perangkat seperti Network Interface Card (NIC), Switch Layer serta Bridge.

 • Logical Link Control (LLC)

Protokol berdasarkan Protokol High-Level Data Link Control (HDLC). LLC menggunakan layanan yang disediakan MAC untuk menyediakan dua jenis operasi yang berjalan di atas Lapisan Data-Link ke Lapisan Jaringan yang berada di atasnya, yakni
  -  LLC Type 1 - Yang digunakan untuk komunikasi secara Connectionless
  -  LLC Type 2 - Yang digunakan untuk komunikasi secara Connection-Oriented.



Lapisan PHYSICAL
Lapisan pertama dalam Model Referensi Jaringan OSI (Lapisan Terendah) dari tujuh lapisan lainnya. Lapisan ini mendefinisikan antarmuka dan mekanisme untuk meletakkan bit-bit data di atas media jaringan (Kabel, Radio, atau Cahaya).

Lapisan mendefinisikan Tegangan Listrik, Arus Listrik, Modulasi, Sinkronisasi antar bit, pengaktifan dan pemutusannya koneksi.  Beberapa karakteristik kelistrikan media Transmisi (Kabel UTP/STP, Kabel Koaksial, Kabel Fiber-Optic). Protokol, RS-232C, dan X.21. Repeater, Transceiver, Network Interface Card (NIC).

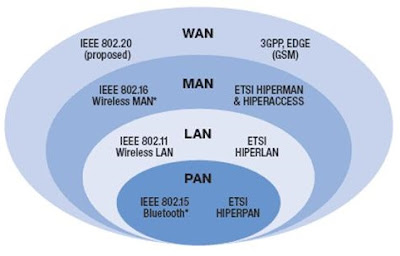

STANDAR IEEE-802
Local Area Network & Metropolitan Area Network

   •   802.1 Higher Layer LAN Protocols

   •   802.2 Logical Link Control (LLC)
   •   802.3 Ethernet
   •   802.4 Token Bus Network
   •   802.5 Token Ring MAC Layer
   •   802.6 Metropolitan Area Network (DQDB)
   •   802.7 Broadband LAN using Coaxial Cable
   •   802.8 Fiber Optic Technical Advisory Group (FOTAG)
   •   802.9 Integrated Services LAN (ISLAN or isoEthernet)
   •   802.10 Interoperable LAN Security
   •   802.11 Wireless LAN (WLAN) & Mesh (Wi-Fi Standard)
   •   802.12 100BaseVG - ( RFC2020 & RFC2266 )
   •   802.13 Reserved for Fast Ethernet Development
   •   802.14 Cable Modems - ( IEEE 802.3 )
   •   802.15 Wireless Personal Area Network
   •   802.15.1  Bluetooth Certification
   •   802.15.2  IEEE 802.15 and IEEE 802.11 Coexistence
   •   802.15.3  High-Rate Wireless PAN ( Others )
   •   802.15.4  Low-Rate Wireless PAN ( eg. ZigBee, WirelessHART, MiWi, etc. )
   •   802.15.5 Mesh Networking for WPAN
   •   802.15.6 Body Area Network - Overview - Nasional Instrument
   •   802.15.7  Visible Light Communications
   •   802.16 Broadband Wireless Access (WiMAX Certification)
   •   802.16.1  Local Multipoint Distribution Service
   •   802.16.2 Coexistence Wireless Access
   •   802.17 Resilient Packet Ring - (Hibernating)
   •   802.18 Radio Regulatory TAG
   •   802.19 Coexistence TAG - Wireless Coexistence
   •   802.20 Mobile Broadband Wireless Access - (Hibernating)
   •   802.21 Media Independent Handoer
   •   802.22 Wireless Regional Area Network
   •   802.23 Emergency Services - Working Group
   •   802.24 Smart Grid TAG - (New Nov, 2012)
   •   802.25 Omni-Range Area Network - (Not yet Ratified)



IEEE 802
Working Groups and Study Groups

   •   802.1    Higher Layer LAN Protocols
   •   802.3    Ethernet
   •   802.11  Wireless Local Area Network
   •   802.15  Wireless Personal Area Network (WPAN)
   •   802.16  Broadband Wireless Access
   •   802.18  Radio Regulatory TAG
   •   802.19  Wireless Coexistence
   •   802.21  Media Independent Handover Services
   •   802.22  Wireless Regional Area Networks
   •   802.24  Vertical Applications TAG
